TP-LINK AC2300 WIRELESS MU-MIMO GIGABIT ROUTER

SKU: ARCHERC2300
  • Velocidades de Wi-Fi más rápidas: velocidades de banda dual de hasta 2.25Gbps: 1625Mbps en 5GHz, 600Mbps en 2.4GHz
  • Procesamiento potente: procesador de doble núcleo a 1,8 GHz con coprocesador
  • Más dispositivos: MU-MIMO logra el triple de eficiencia al comunicarse con hasta 3 dispositivos a la vez
  • Mayor eficiencia: la tecnología Beamforming ofrece una conexión inalámbrica altamente eficiente
  • Ultra Range: Range Boost + Amplificador de potencia + Antenas de alto rendimiento, que le brindan una cobertura aún mayor
  • Rendimiento más fluido: Smart Connect asigna dispositivos de forma inteligente a la mejor banda disponible
  • Mejor conexión VPN: el servidor VPN OpenVPN y PPTP es compatible y la aceleración VPN acelera la conexión VPN a un nivel ultra

Out of stock

14 People watching this product now!

Payment Methods:

Description

WIRELESS
StandardsWi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAC2300
5 GHz: 1625 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range3 Bedroom Houses


3× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi CapacityMedium


Dual-Band
Allocate devices to different bands for optimal performance

3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

Working ModesRouter Mode
Access Point Mode
HARDWARE
Processor1.8 GHz 64 Bit Dual-Core CPU

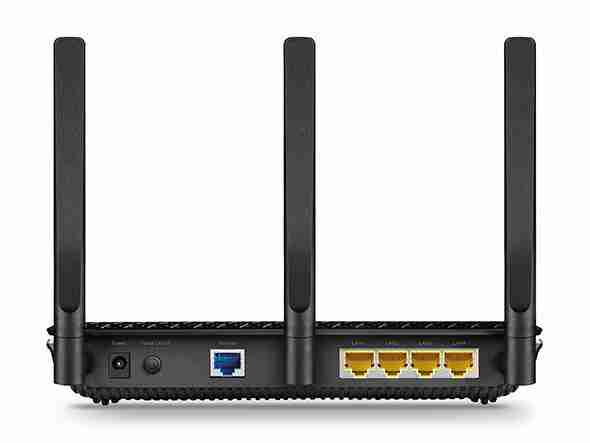

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

BotonesWi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power12 V ⎓ 2 A
SEGURIDAD
WiFi EncryptionWEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus


Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN ServerOpenVPN
PPTP
SOFTWARE
ProtocolsIPv4
IPv6
Service KitsHomeCare™
Learn More>
Parental ControlsHomeCare™ Parental Controls


Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight

WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceQoS by Device

HomeCare™ QoS


QoS by Application

Cloud ServiceOTA Firmware Upgrade
TP-Link ID
DDNS
NAT ForwardingVirtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSTP-Link
NO-IP
DynDNS
ManagementTether App
Webpage
Check Web Emulator>
OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission PowerCE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
WiFi Reception Sensitivity5GHz: 11a 6Mbps: -91dBm
11a 54Mbps: -72dBm
11n HT20: -70dBm
11n HT40: -69dBm
11ac HT20: -60dBm
11ac HT40: -61dBm
11ac HT80: -56dBm
2.4GHz: 11g 54Mbps: -73dBm
11n HT20: -72dBm
11n HT40: -69dBm
PHYSICAL
Dimensions (W×D×H)8.5 × 6.5 × 1.4 in
(216 × 164 × 36.8 mm)
Package ContentsWi-Fi Router Archer C2300
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
